Edge Crush Tester Explained: Resistance Test, Units, and Formula You Must Know

p>In the packaging industry, strength and durability are key factors in ensuring that goods are transported and stored without damage. One of the most important parameters that determine the strength of corrugated boxes is edge crush resistance. To evaluate this property, manufacturers use a specialized machine known as an Edge Crush Tester.

In this blog, we’ll explore everything you need to know about the edge crush resistance test, how the edge crush tester works, the edge crush test units, and the commonly used edge crush test formula. This guide will help you understand why ECT (Edge Crush Test) is a must-have quality check for corrugated packaging.

What is Edge Crush Resistance Test?

The Edge Crush Resistance Test (ECT) is a standard method used to measure the ability of corrugated board to resist crushing when applied to the edge. This simulates the pressure the box would endure while stacked or during transport. The stronger the edge, the better the box will perform under load.

This test is especially critical for corrugated boxes that will be used for stacking or heavy-duty packaging. A box with high edge crush resistance is less likely to deform, collapse, or get damaged in the supply chain.

What is an Edge Crush Tester?

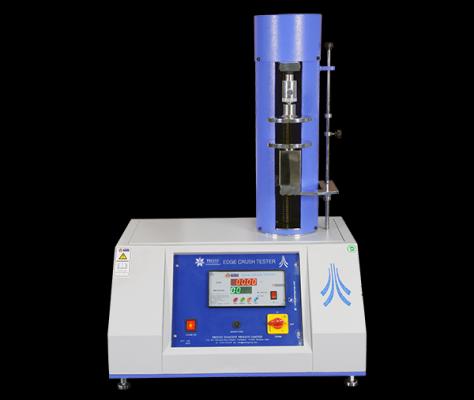

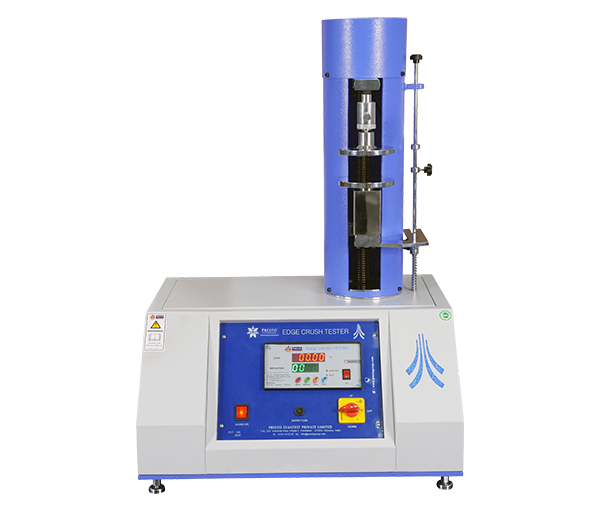

An Edge Crush Tester is a laboratory instrument designed to measure the edgewise compressive strength of corrugated cardboard and similar packaging materials. The equipment applies force on the edge of a test sample until it crushes. The reading is then recorded to determine the edge strength.

These testers are usually equipped with:

• A microprocessor-based digital display


• Precision load cell for accurate force measurement


• Pneumatic or manual clamping mechanisms


• Compliant with standards like ASTM D641, TAPPI T811, and ISO 3037

By using an edge crush tester, packaging companies can determine if their boxes meet specific stacking strength requirements.

Edge Crush Test Units

The results of the edge crush test are typically expressed in the following units:

• kN/m (Kilonewtons per meter)


• N/m (Newtons per meter)


• lb/in (Pounds per inch)


• kg/cm (Kilograms per centimeter)

In India, kg/cm or N/m is commonly used. In the U.S. and other countries, lb/in is the standard unit for expressing ECT results.

Example:

An ECT value of 32 lb/in means that the corrugated board can withstand 32 pounds of force per inch of edge length before collapsing.

Edge Crush Test Formula

While the edge crush tester gives you the ECT value, you can also use this value to estimate the box compression strength (BCT) using a commonly known McKee’s formula:

BCT = 5.87 × ECT × √(P × D)

Where:

• BCT = Box Compression Test (lbs)


• ECT = Edge Crush Test value (lb/in)


• P = Box perimeter (inches)


• D = Box depth (inches)

This formula provides a good estimate of the compression strength of a regular slotted container (RSC) under lab conditions.

Why Edge Crush Testing Matters

Performing an edge crush resistance test gives several benefits to manufacturers and suppliers:

• Product Safety: Prevents product damage due to box deformation.


• Cost Optimization: Helps in using optimal material strength, avoiding over-specification.


• Compliance with Standards: Meets industry norms and packaging regulations.


• Better Logistics Planning: Knowing stacking strength helps in warehouse and transport planning.

Who Should Use Edge Crush Testers?

Edge crush testing is highly recommended for:

• Corrugated box manufacturers


• Paperboard suppliers


• Quality control labs


• E-commerce packaging units


• Logistics and warehousing businesses

If your business deals with shipping, handling, or storing corrugated boxes, investing in a reliable edge crush tester is essential for ensuring quality and customer satisfaction.

Final Thoughts

The edge crush resistance test is a vital part of packaging quality control. It ensures that the boxes you use or manufacture can withstand the pressures of stacking, shipping, and storage. By using an accurate edge crush tester, you can measure this critical parameter and ensure compliance with packaging standards.

Whether you're interested in understanding edge crush test units, calculating strength with the edge crush test formula, or looking for reliable equipment, this test plays a pivotal role in packaging safety.

Choose high-quality instruments from trusted manufacturers to ensure reliable and consistent results. Regular testing not only ensures durability but also enhances your brand's reputation for delivering safe and sturdy packaging.

---
